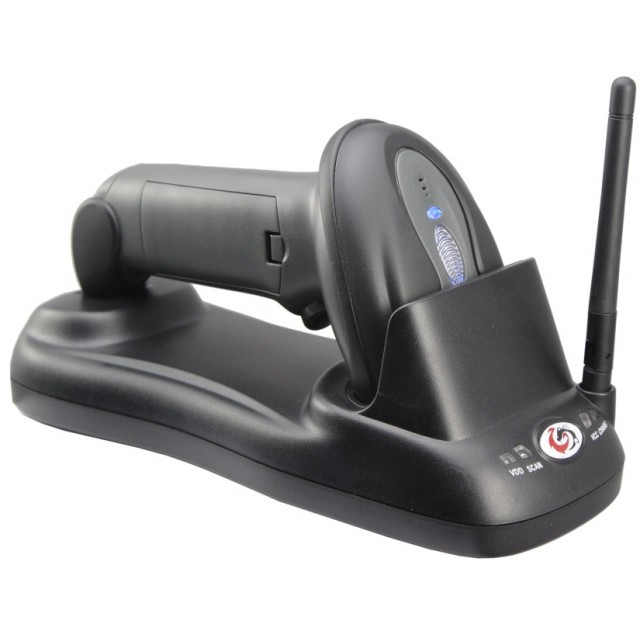

| XL-9310 Wireless Barcode Scanner |
| Wireless induction charge without cable |
| The battery can be easily taken from the scanner |
| 1 base frame can support 99 scanners |
| The communication distance on open places is up to 600m |
| Antiknock design: withstand 1.5M drops |
| Service life of button reaches up to 50 million times |
| Supporting the RS232,PS2 and USB interface |
| Full independent intellectual property rights |
( having been award with multiple national patents)
|
| XL-9310 Technical Specifications |
| PERFORMANCE PARAMETER |
| Light Source |
Visible Laser Diode 650nm |
| Scan Pattern |
Single Scan & Manual |
| Working Frequency Range |
433 MHz ISM frequency |
| Communication Distance |
Up to 600m at open places |
| Scan Rate |
100 times/second |
| Scan Precision |
0.10mm(pcs0.9) |
| Scan Width |
30mm@scan window, 220mm@200mm |
| Scan Depth of field |
0-250mm (0.33mm pos0.9) |
| Decode Capability |
EAN-8, EAN-13, UPC-A, UPC-E,Code 39, Code 128, EAN128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, etc. |
| Tilt & Elevation & Deflection |
30°& 65°& 55° |
| Support Inferface |
RS232, PS2 and USB |
| Print Contrast |
30% UPC/EAN 100% |
| Mention Pattern |
Buzzer, Indicator |
| MECHANICAL PARAMETER |
| Size |
L x W x H: 95mm x 70mm x 160mm |
| Weight |
158g |
| Material |
ABS + PC |
| Cable |
Standard 2M straight |
| ELECTRICAL PARAMETER |
| Battery Capability |
900mAh |
| Voltage |
12Volts |
| Operating Current |
85mA |
| Static Current |
36mA |
| Laser Class |
Meet the Grade I National Criteria for Laser Safety |
| EMC |
CE & FCC DOC compliance |
| ENVIRONMENTALPARAMETER |
| Operating Temperature |
0°Cto45°C |
| Storage Temperature |
-20°C to60°C |
| Humidity |
5% to 85% relative humidity, non-condensing |
| Light Levels |
Daylight, 5000Lux |
| Shock |
Designed to withstand 1.5M drops |
